Schumaprobe 1"x24", 40 Micron, Porous Polyethylene Sparge Point

Monoflex Schumaprobe

Monoflex Schumaprobe

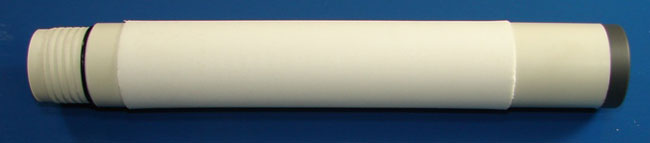

The Sparge Point sample (aka Schumasoil® or Piezometer) pictured above shows the optional male flush threaded plug.

                          Monoflex Sparge Point

Bubbles using Monoflex Well Screen              Bubbles using Monoflex Sparge Point

This newly designed Sparge Point is unique in that it is the only Sparge Point on the market that has a male flush thread on one end and a female flush thread on the other end. These units may be screwed together for longer lengths or placed at various depths within the well.

They may be screwed to 8 TPI, ASTM F-480, flush threaded PVC or flush threaded stainless steel casing. Adapters from flush thread to NPT thread are available. These will accept your choice of flush thread plugs, caps or points.

All fittings sold separately.

Details:

  • Size: 1” (nominal)
  • Schedule 40
  • Nominal O.D.: 1.315
  • Maximum O.D.: 1.415
  • Pore Size: 40 micron
  • Body Length: 24”
  • Overall Length: 28”

Unit Part Number: PIEZPLY1.3X1X24A8

Box Part Number: PIEZPLY1.3X1X24A8X (25/box)

Call for other sizes
